Borduurgaren Double Twister Machine

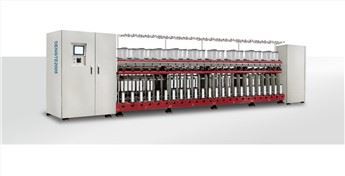

DT2005 Precision CNC Composite Twisting Machine
borduurgaren dubbele twister machine
The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients' requirement. If you need some kind of thread and yarns, not machine, you can also call us and tell us you requirements about thread or yarns and we will produce it in accordance with your demand.embroidery thread double twister machine
Garen van hoge kwaliteit
Lierrol aangedreven door enkele spil, nauwkeurigere garendraaiing, geen externe krachtextrusie, meer afgeronde dwarsdoorsnede;
Weergave van computertracking op spilsnelheid, zorg voor nauwkeurigheid van zowel initiële als samengestelde twist;
Geen olie geïmporteerde materialen van het maken van snelstaal, minder breuk;
NC-wikkeling met constante spanning, zorgt voor constante draadsnelheid, volumegewicht tot 1,6 kg.
Aantal lagen:
21: 50D—500D
31: 50D—1000D
Producten gelden voor naaien, borduren, gebonden draad.
borduurgaren dubbele twister machine
Spindel regeling | 21 | 31 | |
Aanvoerspindel NR. (1 sectie) | 36 | 40 | 36 |
Ring spindel NR. (1 sectie) | 18 | 20 | 12 |
Aanvoerspindel NR. (10 sectie) | 360 | 400 | 360 |
Ring spindel NR. (10 sectie) | 180 | 200 | 120 |
Belangrijkste technische datum:
Draaibereik | 650 tot 1250t/m, 3 tot 32t/inch |
Draairichting | S of Z veranderlijk |
Einden monteren | 2-4 |
Ring | Φ115mm Φ140mm |
Max.opwindhoogte | 330 mm |
Spindel rijden | Tangentiële belaandrijving |
Startmodus: | Traploze snelheid geregeld door omvormer |
Neem-omhoog spindelmeter | 21 162 mm 180 mm 31 270 mm |
Spindel snelheid: | 6000-7500rpm |
Neem-de capaciteit van de spoel op | 21 1,1 kg 31 1,6 kg of 2 kg |
Max.geïnstalleerd vermogen | 16.1kw |
Totale grootte | LWH=18.84M1.10M1.80M |
